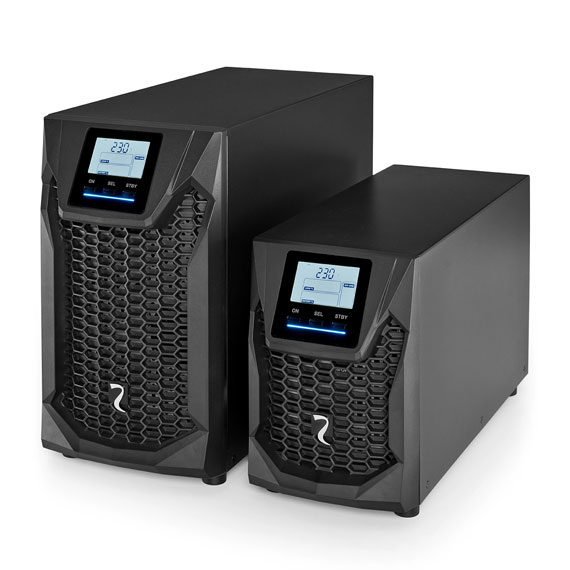

Sentinel Pro2
Power Range: 700 - 3000 VA
The Sentinel Pro2 is a UPS with a modern design and enhanced performance, developed by the Riello UPS Research & Development team. It uses ON LINE double conversion technology, ensuring maximum reliability and protection for critical loads such as servers and IT or voice/data applications. For applications requiring long battery autonomy, ER models allow extended runtime thanks to more powerful battery chargers. The front panel includes an LCD display showing input/output voltages and battery status, while an LED bar immediately indicates the UPS’s operating status.
8 models in this range · quoted to order by an authorized Riello UPS reseller
Highlights
- Power factor 1
- Operating flexibility
- Emergency function
- Battery optimisation
- Runtime expandability
- Low noise level
- Configurable via PC
Models & ordering
Riello model designations are the order codes. Each model is quoted to order; open a model for its full specification and to request pricing and lead time.
| Model | Rated power | Active power | Dimensions (h w d) | Weight | |
|---|---|---|---|---|---|
| SP2 700 A3 | 700 VA | 700 W | 235 x 158 x 422 mm | 10.2 kg | Quote |
| SP2 1000 A3 | 1000 VA | 1000 W | 235 x 158 x 422 mm | 12.5 kg | Quote |
| SP2 1000 ER | 1000 VA | 1000 W | 235 x 158 x 422 mm | 7 kg | Quote |
| SP2 1500 A5 | 1500 VA | 1500 W | 235 x 158 x 422 mm | 13.6 kg | Quote |
| SP2 2200 A3 | 2200 VA | 2200 W | 333 x 190 x 446 mm | 23.3 kg | Quote |
| SP2 2200 ER | 2200 VA | 2200 W | 333 x 190 x 446 mm | 11 kg | Quote |
| SP2 3000 A5 | 3000 VA | 3000 W | 333 x 190 x 446 mm | 26.3 kg | Quote |
| SP2 3000 ER | 3000 VA | 3000 W | 333 x 190 x 446 mm | 11.1 kg | Quote |
Ships from and sold by A5 IT.
Users Guides
Select file languageCertifications
Select file language- CEI 0-16
Indicazioni per il rispetto della compatibilità alla Norma per la Media Tensione
| Input | |
| Rated power | 700 VA |
|---|---|
| Voltage | 220 / 230 / 240 |
| Voltage tolerance | 230 V ±20% |
| Frequency | 50/60 Hz |
| Frequency tolerance | 50 Hz ±20% / 60 Hz ±20% |
| Power factor | 1 |
| Current distorsion | ≤5.2% |
| By Pass | |
| Voltage tolerance | 180 / 264 V |
| Frequency tolerance | Configurable: 3% ÷ 10% |
| OUTPUT and INVERTER OUTPUT | |
| Rated power | 700 VA |
| Active power | 700 W |
| Number phases | 1 |
| Crest factor (Ipeak/Irms) | 3:1 |
| Waveform | Sinusoidal |
| Frequency | Selectable: 50 or 60 or self-learning |
| Voltage distortion with non-linear load | <4% |
| Voltage distortion with linear load | <2% |
| Overload Times | |
| Load = 150% | 1 s |
| Load = 125% | 4 s |
| Batteries | |
| Type | VRLA AGM maintenance-free lead based |
| Typical recharge time | 2-4 h |
| Environmental | |
| Color | RAL 9005 |
| Communication | USB / RJ45 with dry contacts / Slot for communications interface |
| Safety compliance | IEC EN 62040-1 |
| EMC compliance | EMC 2014/30/EU electromagnetic compatibility; EMC IEC EN 62040-2 |
| Accessories provided | Power cable, IEC-IEC cable, USB cable, safety manual, quick start guide |
| Marks | CE, GS/NEMKO, UL |
| Line-Interactive/Smart Active efficiency | 98% |
| Noise (at 1 m) | <40 [dBA] (ECO Mode) |
| Operating temperature | 0 °C - +40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: L V 2014/35/EU low voltage; Directive and Standards: RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111; UL 1778:2014 and CSA C22.2 No. 107.3-14 |
| Data | |
| Weight | 10.2 kg |
| Dimensions (h w d) | 235 x 158 x 422 mm |
Characteristics
MODERN DESIGN AND ENHANCED PERFORMANCE UPS
The Sentinel Pro2 UPS offers a completely modern design with enhanced performance, developed by the Riello UPS Research & Development team. This high-performance uninterruptible power supply is ideal for protecting critical IT systems, servers, and business infrastructure, ensuring reliable power at all times.
RELIABLE ON LINE DOUBLE CONVERSION UPS TECHNOLOGY
Equipped with ON LINE double conversion technology, the Sentinel Pro2 provides maximum protection and the highest reliability for essential loads such as servers, IT networks, and voice/data applications. This business continuity UPS ensures uninterrupted power, making it perfect for critical operations and data centers.
EXTENDED BATTERY AUTONOMY FOR LONG-RUN BUSINESS UPS
The Sentinel Pro2 ER models feature powerful battery chargers, allowing extended runtime for long-lasting backup during power outages. With extended battery autonomy, this UPS supports continuous operation for servers, networking equipment, and other mission-critical devices, ensuring smooth business continuity.

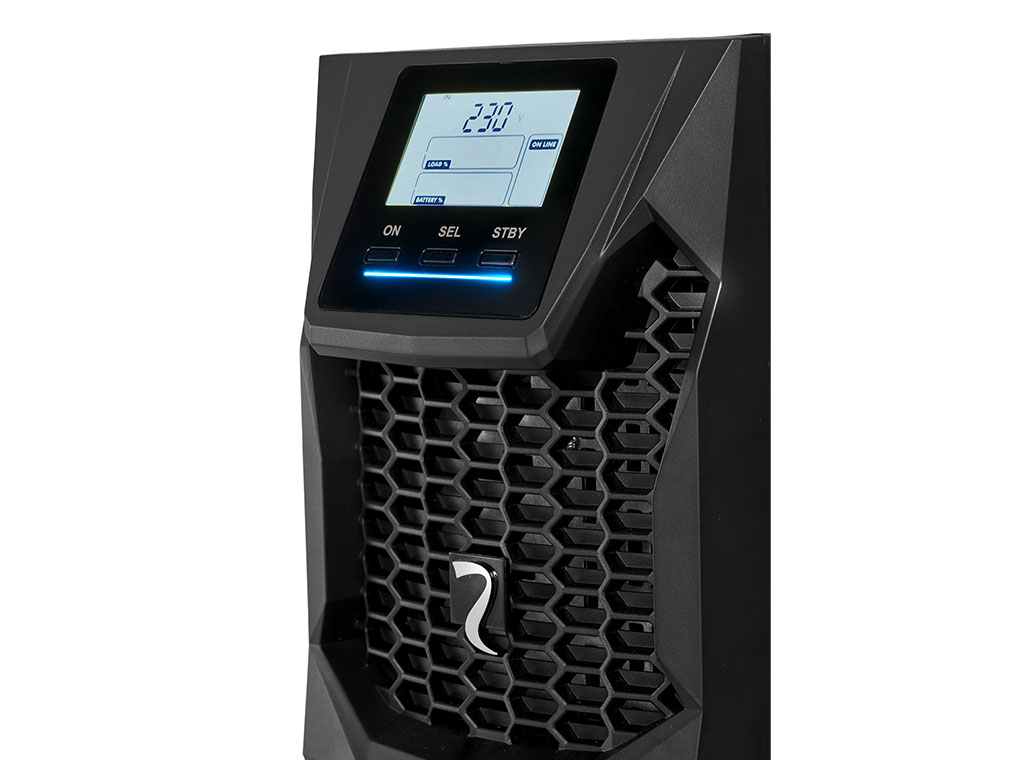

USER-FRIENDLY LCD AND LED STATUS DISPLAY FOR UPS MONITORING
The UPS comes with a front LCD display showing input and output voltages, battery levels, and operational status. The LED status bar provides instant visual feedback, making it easy to monitor the UPS performance. Perfect for IT managers and businesses that need real-time UPS monitoring.
MAXIMUM EXPANDABILITY AND CONNECTIVITY FOR IT INFRASTRUCTURE
The Sentinel Pro2 includes a USB port and an expansion slot for protocol conversion or relay contact boards. This expandable UPS solution allows seamless integration with servers, network devices, and other business-critical systems, offering flexibility and scalability for growing IT infrastructur.
ENERGY-EFFICIENT OPERATING MODES FOR BUSINESS UPS
With multiple energy-saving operating modes, the Sentinel Pro2 reduces power consumption while maintaining full protection. It can also function as a frequency converter UPS, providing energy-efficient solutions for businesses that want to optimize power usage without compromising reliability.
ENERGYSHARE OUTPUT SOCKETS FOR SMART LOAD MANAGEMENT
The UPS features 2 EnergyShare output sockets that automatically disconnect non-critical loads under selected conditions. Using the configuration software, users can control which events trigger disconnection, offering smart load management and enhancing energy efficiency for servers, IT equipment, and business-critical devices.
