Master HP
Power Range: 100 - 600 kVA
Maximum protection and performance.
The Master HP series from 100 to 600 kVA is the Riello UPS solution for installations requiring high energy efficiency and maximum power availability. Master HP Series provides maximum protection and power quality for data centres and industrial loads. The UPS has an IGBT-based rectifier, DSP (Digital Signal Processor) technology and provides true-line, double conversion power protection, (VFI SS 11 - Voltage and Frequency Independent in accordance with IEC EN 62040-3).
9 models in this range · quoted to order by an authorized Riello UPS reseller
Highlights
- High efficiency up to 94.5% in ON LINE mode
- Rectifier IGBT based technology
- Galvanic isolation
- High overload capacity
- LCD display
Models & ordering
Riello model designations are the order codes. Each model is quoted to order; open a model for its full specification and to request pricing and lead time.
| Model | Rated power | Active power | Dimensions (h w d) | Weight | |
|---|---|---|---|---|---|
| MHT 100 | 100000 VA | 90000 W | 1900x800x850 mm | 700 kg | Quote |
| MHT 120 | 120000 VA | 108000 W | 1900x800x850 mm | 750 kg | Quote |
| MHT 160 | 160000 VA | 144000 W | 1900x1000x850 mm | 835 kg | Quote |
| MHT 200 | 200000 VA | 180000 W | 1900x1000x850 mm | 970 kg | Quote |
| MHT 250 | 250000 VA | 225000 W | 1900x1000x850 mm | 1060 kg | Quote |

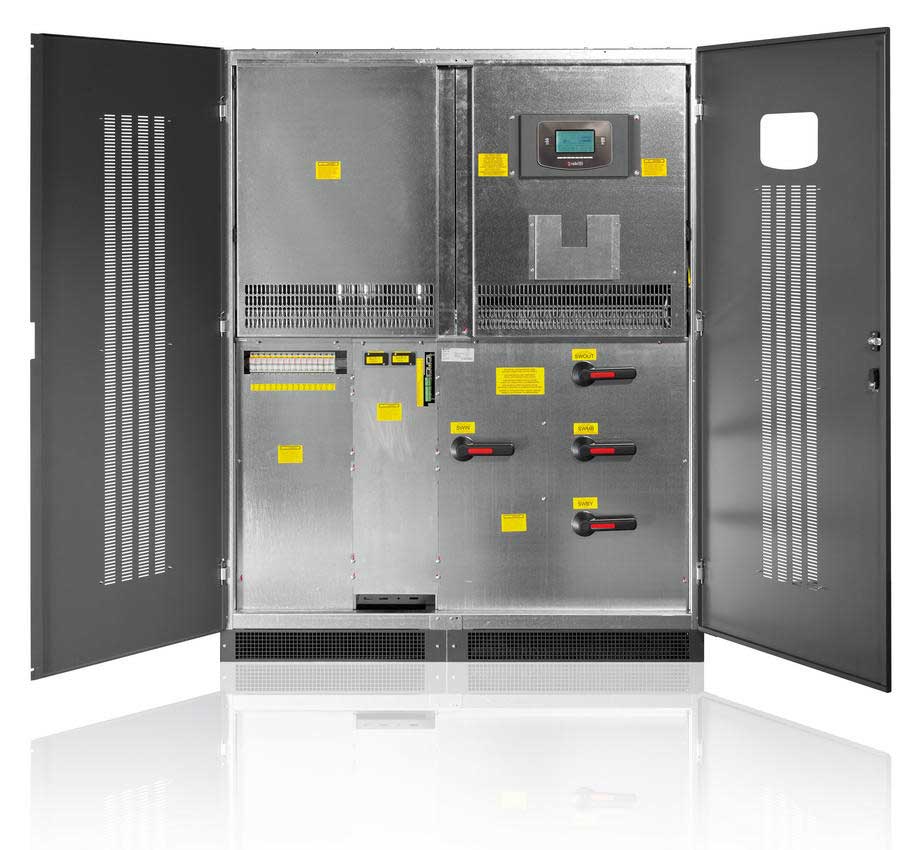

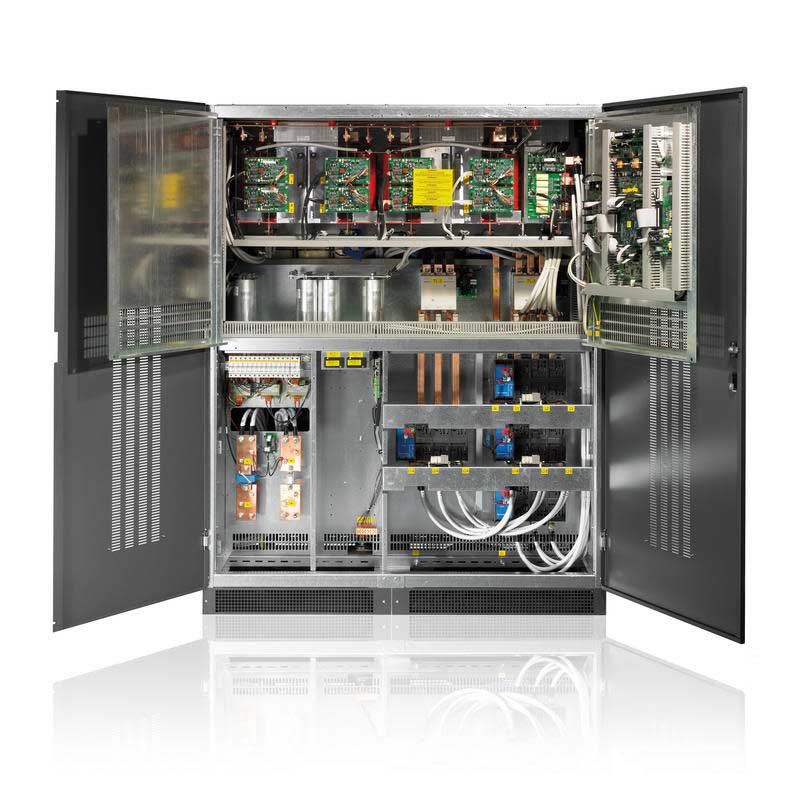

| MHT 300 | 300000 VA | 270000 W | 1500x1000x1900 mm | 1500 kg | Quote |
| MHT 400 | 400000 VA | 360000 W | 1900x1500x1000 mm | 1720 kg | Quote |

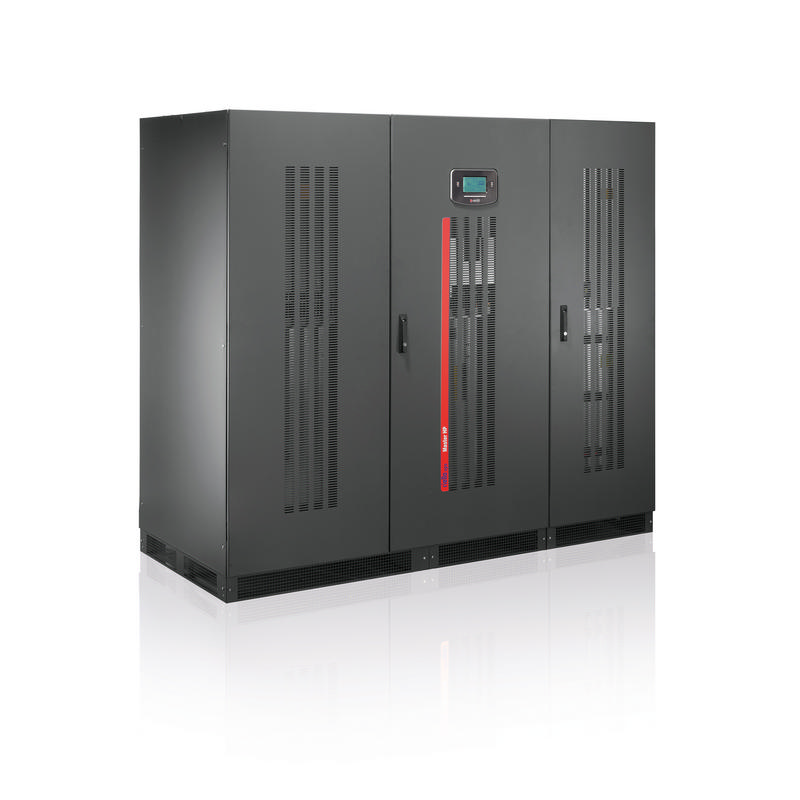

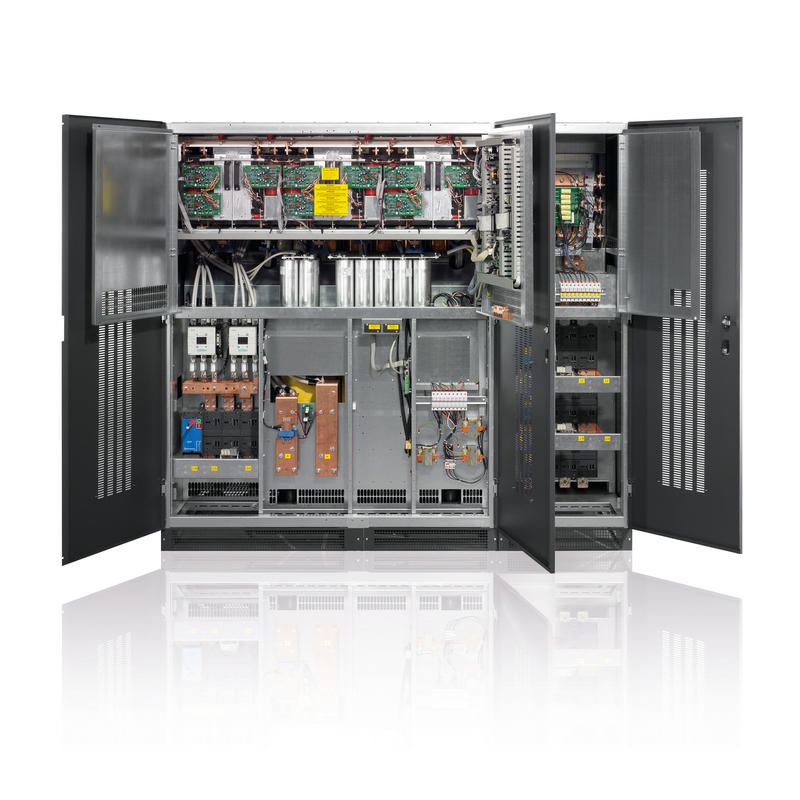

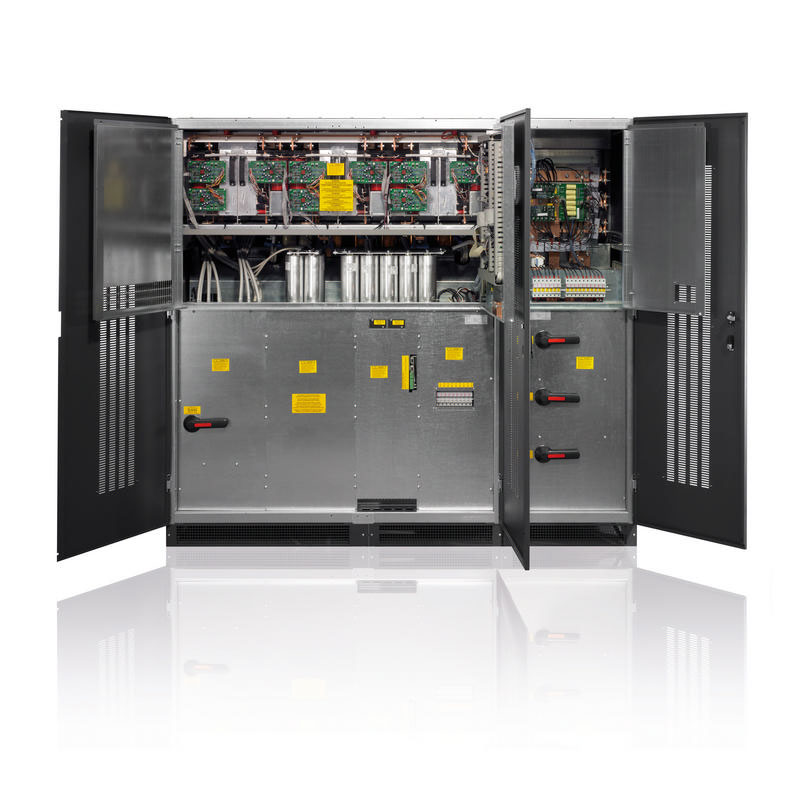

| MHT 500 | 500000 VA | 450000 W | 1900x2100x1000 mm | 2440 kg | Quote |
| MHT 600 | 600000 VA | 540000 W | 1900x2100x1000 mm | 2831 kg | Quote |
Ships from and sold by A5 IT.
| Input | |
| Rated power | 100000 VA |
|---|---|
| Voltage | 380 / 400 / 415 V three-phase |
| Voltage tolerance | 400 V ±20% @ full load (for wider tolerance conditions apply) |
| Frequency | 45 - 65 Hz |
| Frequency tolerance | ±2% (selectable from ±1% to ±5% from front panel) |
| Power factor | >0.99 |
| Current distorsion | <3% |
| Soft start | 0 - 100% in 120 sec. (selectable) |
| By Pass | |
| Rated voltage | 380 / 400 / 415 V three-phase + N |
| Rated frequency | 50 or 60 Hz (selectable) |
| OUTPUT and INVERTER OUTPUT | |
| Rated power | 100000 VA |
| Active power | 90000 W |
| Crest factor (Ipeak/Irms) | 3 : 1 |
| Dynamic stability | ±5% in 10 ms |
| Frequency | 50 or 60 Hz (selectable) |
| Voltage distortion with non-linear load | <3% |
| Voltage distortion with linear load | <1% |
| Frequency stability | 0.05% |
| Overload | 110% for 60 min.; 125% for 10 min.; 150% for 1 min. |
| Batteries | |
| Type | VRLA AGM / GEL; NiCd; Supercaps; Li-ion; Flywheels |
| Environmental | |
| Color | Dark grey RAL 7035 |
| Protection rating | IP20 (others on request) |
| Noise (at 1 m) | 63 - 68 [dBA] |
| Remote signals | Dry contacts (configurable) |
| Operating temperature | 0 °C - +40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111 |
| Data | |
| Weight | 700 kg |
| Dimensions (h w d) | 1900x800x850 mm |
Characteristics
Zero Impact Source
The Master HP serie features the added advantages of the Zero Impact Source formula offered by an IGBTbased rectifier assembly. This eliminates problems connected with installation in networks with limited power capacity, where the UPS is supplied by a generator set or anywhere there are compatibility problems with loads generate current harmonics. Master HP series UPS have zero impact on the power supply source, whether it is a mains grid or generator set:
- input current distortion <3%;
- input power factor 0.99;
- power walk-in function that ensures progressive rectifier start up;
- start up delay function, to restart the rectifiers when mains power is restored if there are several UPS in the system.
Battery Care System: maximum battery care
Master HP series UPS include a range of features designed to prolong battery life and reduce their usage such as different recharging methods, deep discharge protection, current limitation and voltage compensation according with battery room temperature.
Complete galvanic separation
Master HP UPS feature an output isolation transformer (delta zig/zag type) on the inverter as part of the inverter circuit inside the UPS cabinet, providing galvanic isolation between the load and the battery with improved versatility in system configuration.
Main features
The entire Master HP range is suitable for use in a wide range of applications. Thanks to the flexibility of configuration, available options and accessories, it is suitable for supplying any type of load, e.g. capacitive loads such as blade servers, rather then motor drivers or any other critical vertical application.
- High efficiency up to 99.4% (STANDBY ON Mode);
- Compact size: e.g.: only 0.85 m² for the Master HP 250 kVA;
- Reduced weight for tranformer based UPS;
- Double load protection, both electronic and galvanic, towards the battery.
