Vision Dual
Power Range: 1.1 - 3 kVA
The Vision Dual range (tower and rack), includes models from 1100 VA to 3000 VA with sinusoidal digital technology. The Vision Dual range, with its advanced communications and connectivity options, is the ideal solution for installations requiring superior protection and versatility in the power supply system. Vision Dual is the ideal solution for the protection of peripheral network devices, conventional or rack servers, and network back-up systems. Vision Dual has a practical, modern design and includes several performance advantages over traditional ON LINE UPS. All developed by the Riello UPS research and development team. The UPS provides efficiency levels of 98% and therefore reduced energy consumption. It has an output power factor of 0.9.
6 models in this range · quoted to order by an authorized Riello UPS reseller
Highlights
- Automatic Voltage Regulation (AVR)
- Superior protection
- High efficiency
- High availability
- Versatility
- Advanced communications
Models & ordering
Riello model designations are the order codes. Each model is quoted to order; open a model for its full specification and to request pricing and lead time.
| Model | Rated power | Active power | Dimensions (h w d) | Weight | |
|---|---|---|---|---|---|
| VSD 1100 | 1100 VA | 990 W | 87x450x425 / 2Ux19''x425 mm | 16.5 kg | Quote |
| VSD 1500 | 1500 VA | 1350 W | 87x450x425 / 2Ux19''x425 mm | 17.5 kg | Quote |
| VSD 2200 | 2200 VA | 1980 W | 87x450x625 / 2Ux19''x625 mm | 28 kg | Quote |
| VSD 2200 ER | 2200 VA | 1760 W | 87x450x625 / 2Ux19''x625 mm | 15.5 kg | Quote |
| VSD 3000 | 3000 VA | 2700 W | 87x450x625 / 2Ux19''x625 mm | 31.5 kg | Quote |
| VSD 3000 ER | 3000 VA | 2400 W | 87x450x625 / 2Ux19''x625 mm | 16.5 kg | Quote |
Ships from and sold by A5 IT.
| Input | |
| Rated power | 1100 VA |
|---|---|
| Voltage | 220 / 230 / 240 V |
| Frequency | 50 Hz or 60 Hz ±5 |
| Frequency tolerance | 50 Hz ±5% / 60 Hz ±5% |
| Power factor | >0.98 |
| Current distorsion | ≤7% |
| OUTPUT and INVERTER OUTPUT | |
| Rated power | 1100 VA |
| Active power | 990 W |
| Crest factor (Ipeak/Irms) | 2.5 : 1 |
| Wave form on battery | Sinusoidal |
| Frequency on battery operation | Selectable: 50 Hz or 60 Hz or self-learning |
| Voltage distortion with non-linear load | <8% |
| Voltage distortion with linear load | <3% |
| Overload Times | |
| Load = 150% | 1 sec. |
| Load = 125% | 10 sec. |
| Batteries | |
| Type | VRLA AGM maintenance-free lead based |
| Typical recharge time | 2-4 h |
| Environmental | |
| Color | Black |
| Communication | USB / DB9 with RS232 and contacts / Slot for communication interface |
| Accessories provided | Power cable, serial cable, USB cable, safety manual, quick start guide, user manual on CD-ROM |
| Surge capability | 300 J |
| Protections | Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery |
| Line-Interactive/Smart Active efficiency | 98.5% |
| Noise (at 1 m) | <40 [bBA] (ECO Mode) |
| Storing temperature | 0 °C - +40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant |
| Data | |
| Weight | 16.5 kg |
| Dimensions (h w d) | 87x450x425 / 2Ux19''x425 mm |
Characteristics
Very high protection
The automatic voltage regulator (AVR) provides protection from surges, overvoltages and undervoltages, without battery intervention. Reduced battery usage ensures that the battery set is 100% available for mains power supply failures and is able to provide greater autonomy. EMI filters then provide further protection from voltage surges and transients. When the mains power supply fails, the load is powered by the inverter and receives a perfectly sinusoidal supply for maximum power continuity and reliability.
High availability

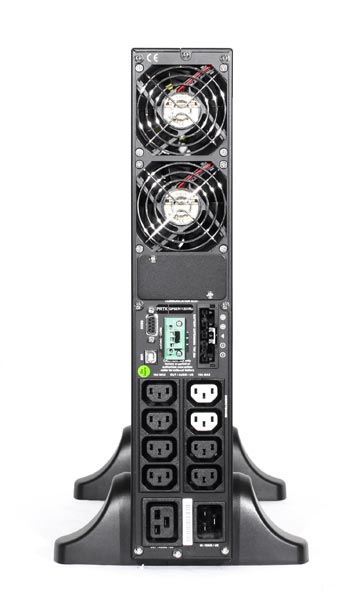

An EnergyShare socket allows load-shedding and the shutdown of less sensitive peripheral devices to extend battery runtime for critical loads. “Hot Swap” batteries can be removed via the front panel for easy and safe UPS maintenance. For business continuity applications requiring long battery runtimes, battery autonomy can be extended up to several hours using ER models (versions 2200 and 3000) fitted with more powerful battery chargers. Battery test facility to detect deteriorating battery performance. Deep discharge protection to reduce battery ageing.
Versatility

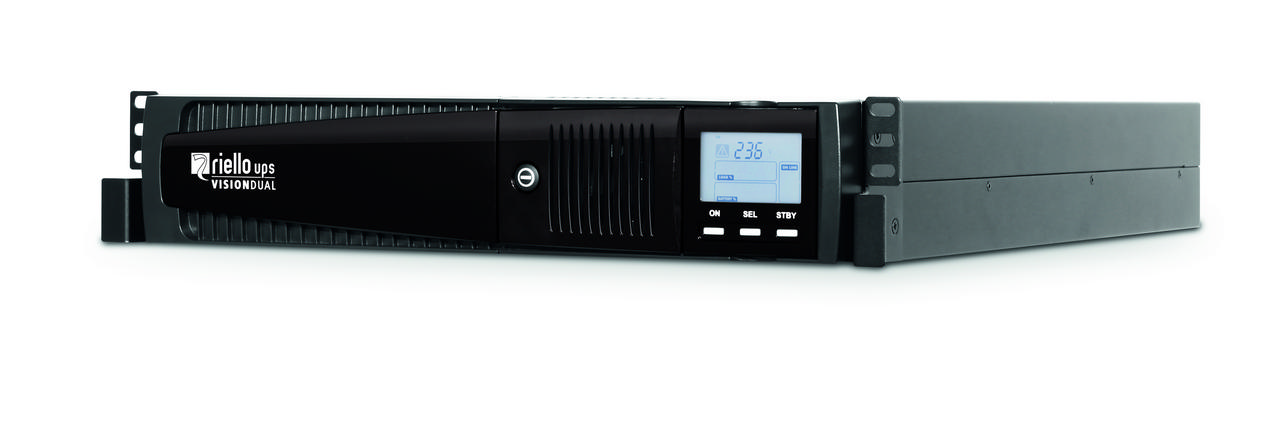

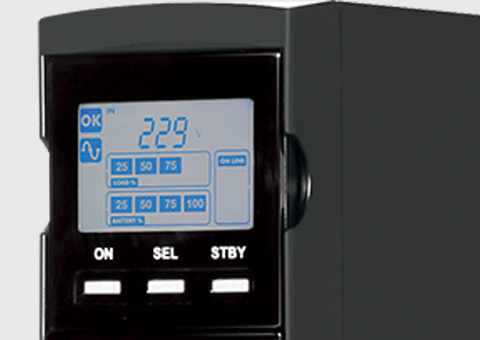

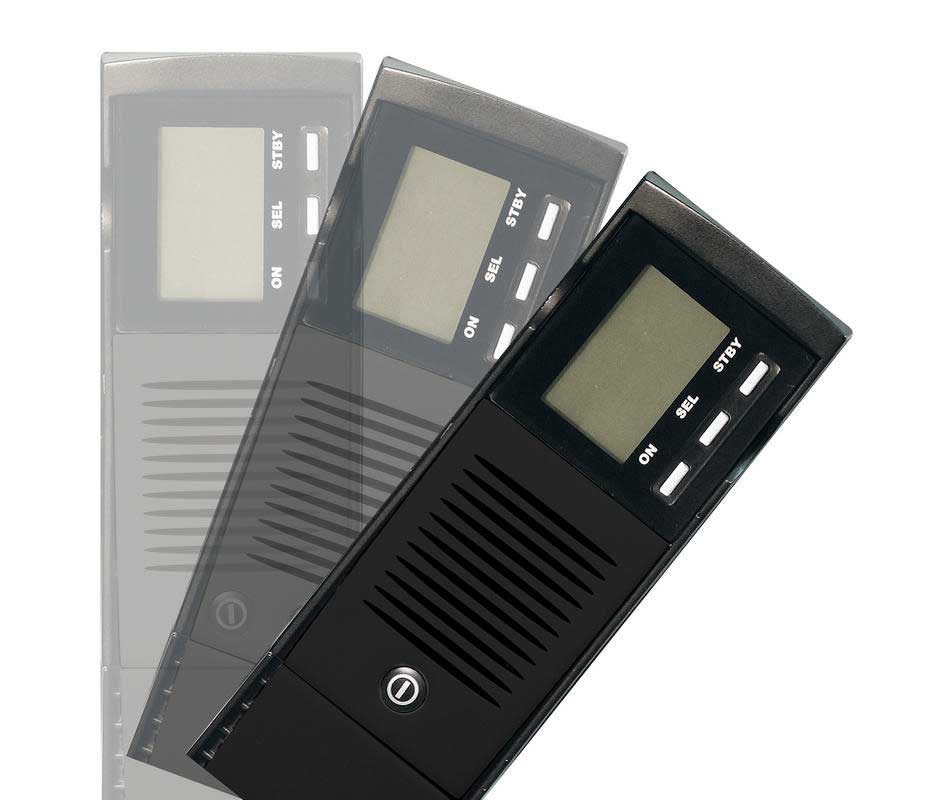

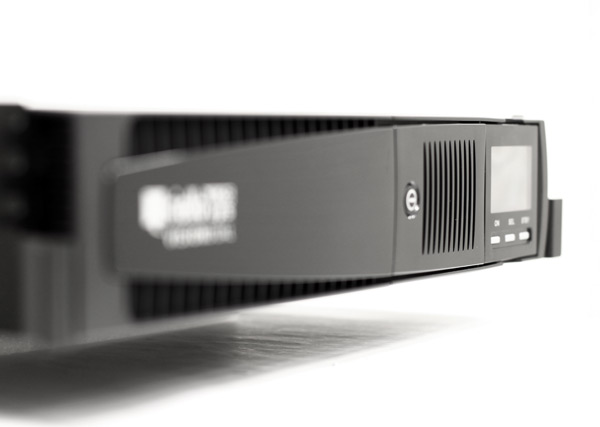

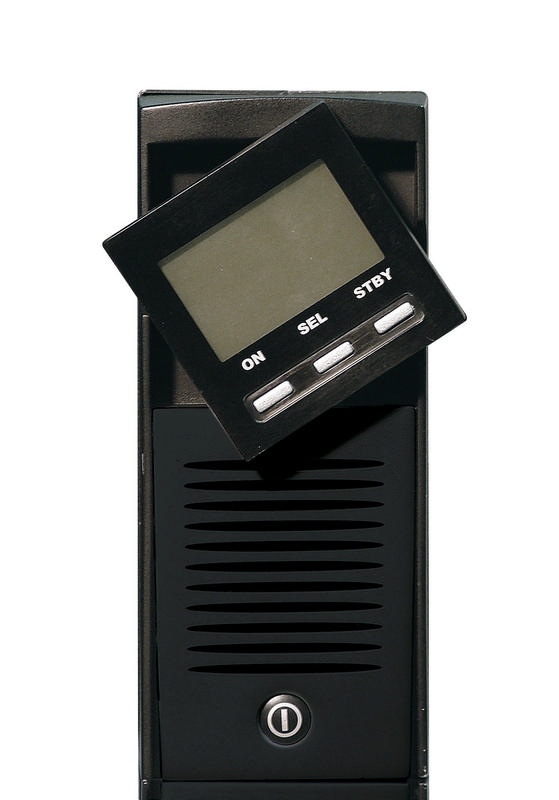

Vision Dual can be installed as a tower or in 19” rack cabinets. The display panel can be easily removed and rotated to suit the type of installation required. Vision Dual is equipped with an emergency power off (EPO) contact that allows for remote shutdown in emergency situations. Cold Start function to allow the UPS to power up with no mains power supply present. Vision Dual models have a backlit LCD display providing UPS status information, load and battery performance.
Advanced communication
- Advanced multi-platform communications for all operating systems and network environments: PowerShield 3 monitoring and shutdown software included, with SNMP agent, for Windows operating systems 10, 8, 7, Hyper-V, 2019, 2016, 2012, and previous versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems;
- USB or RS232 serial port interface (selectable);
- Expansion slot for SNMP agent interface boards;
- Status, measurements, alarms and input, output and battery parameters available on LCD display.
