Multi Socket PDU
16 A Automatic Transfer Switch
The Riello UPS Multi Socket PDU (MDU) is designed to distribute AC power from a single source to 8 outputs with advanced load monitoring and local or remote ON/OFF switching control of individual outlets. The Riello UPS Multi Socket PDU provides best-in-class power distribution, enabling data center and information technology (IT) managers to effectively monitor and manage their rack environments. The LCD display allows you to view the status of each output (ON/OFF), the input voltage and current, the current on each output and any alarm codes present. At the top of the display, there are eight icons representing the status of the eight outputs: if the icon is on, the relative output is powered; if icon is off, the relative output is not powered; if the icon is blinking, the relative output is overloaded.
1 model in this range · quoted to order by an authorized Riello UPS reseller
Highlights
- Distribute AC power from a single source to a maximum of 8 outputs
- Input current of up to 16A with maximum output current of 4A per socket
- LCD display shows the status of each output
- Connectivity slot enables LAN connection and remote management
- USB and RS232 communications slots
Models & ordering
Riello model designations are the order codes. Each model is quoted to order; open a model for its full specification and to request pricing and lead time.
Ships from and sold by A5 IT.
Users Guides
Select file language| Input | |
| Voltage | 184-276 (selectable) |
|---|---|
| Frequency | 50 / 60 Hz |
| Environmental | |
| Color | RAL 5004 |
| Communication | RS232 / USB / Slot for communication interface |
| Protection rating | IP20 |
| Protections | Overcurrent - overvoltage - undervoltage - protection against energy back-feed |
| Noise (at 1 m) | <25 |
| Operating temperature | 0 °C - 40 °C |
| Relative humidity | 5-95% non-condensing |

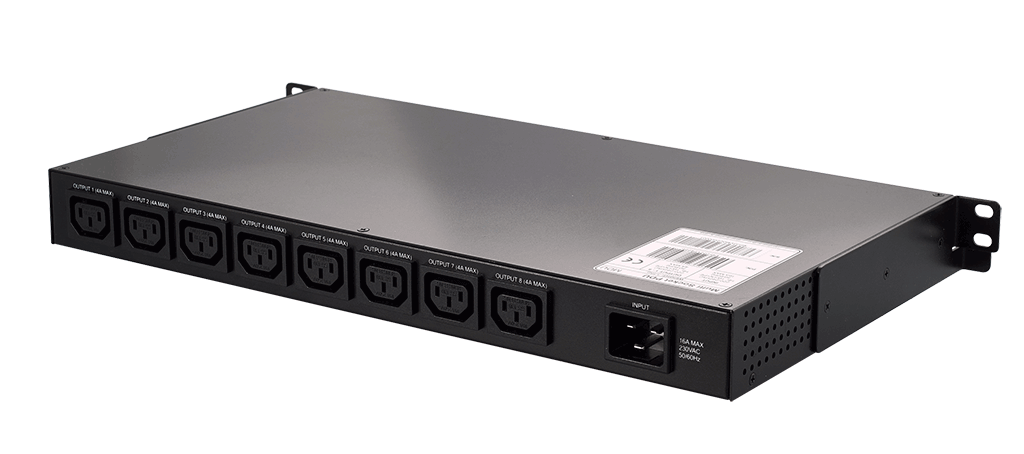

| Output sockets | 8 IEC-320 C13 (10 A) |
| Data | |
| Weight | 5 kg |
| Dimensions (h w d) | 1U x 19” x 250 mm |
Characteristics
Multi Socket PDU is a high-performing and compact 1U power distribution unit that supplies AC power to up to 8 connected devices from a single source.
Easily Monitor And Manage Rack Environments Multi Socket PDU incorporates a simple LCD display panel with 8 icons clearly indicating the status of each output. If the icon is illuminated, that indicates the output is receiving power, if it isn’t the output isn’t receiving power. Flashing icons indicate an overload. The panel also shows real-time operating data such as the input voltage and current.
Best In Class Power Distribution Provides power to 8 IEC sockets (maximum 4A output per socket) from a single 16A power input. You can easily set voltage and current thresholds for the input, as well as a maximum current level for the output.
User-Friendly Features Compact 1U rackmounted PDU incorporates a manual bypass switch, USB and RS232 comms ports, and an expansion slot for additional communications boards.
