Master Industrial
Power Range: 30 - 80 kVA
DC BUS 220 Vdc Ideal for industrial installations
Master Industrial series UPS provide maximum protection and power quality for any type of load, especially industrial applications, such as manufacturing and petrochemical processes, electrical distribution and power plants. Master Industrial is an ON LINE double conversion UPS (class VFI SS 111 in accordance with IEC EN 62040-3) with input and output isolation transformers.
4 models in this range · quoted to order by an authorized Riello UPS reseller
Highlights
- Battery voltage: 220 Vdc
- Galvanic isolation of input and output
- High short circuit current
- Redundant ventilation
Models & ordering
Riello model designations are the order codes. Each model is quoted to order; open a model for its full specification and to request pricing and lead time.
| Model | Rated power | Active power | Dimensions (h w d) | Weight | |
|---|---|---|---|---|---|
| MIM 30 | 30000 VA | 24000 W | 1900x800x800 mm | 620 kg | Quote |
| MIM 40 | 40000 VA | 32000 W | 1900x800x800 mm | 630 kg | Quote |
| MIM 60 | 60000 VA | 48000 W | 1900x1200x800 mm | 900 kg | Quote |
| MIM 80 | 80000 VA | 64000 W | 1900x1200x800 mm | 1060 kg | Quote |
Ships from and sold by A5 IT.
| Input | |
| Voltage | 400 V Three-Phase |
|---|---|
| Voltage tolerance | ±20% |
| Frequency | 50 or 60 Hz |
| Frequency tolerance | 45 ÷ 65 Hz |
| Power factor | ≥0.95 |
| Current distorsion | ≤10% |
| Soft start | 0 ÷ 120 s configurable |
| By Pass | |
| Rated voltage | 230 Single-Phase plus neutral |
| Voltage tolerance | ±15% (±10 ÷ ±25 configurable) |
| Rated frequency | 50 or 60 Hz |
| Frequency tolerance | ±2% (±1 ÷ ±6 configurable) |
| Number phases | 1 |
| Back-feed protection | Yes |
| OUTPUT and INVERTER OUTPUT | |
| Rated power | 30000 VA |
| Active power | 24000 W |
| Number phases | 1 |
| Crest factor (Ipeak/Irms) | 3:1 |
| Waveform | Sinewave |
| Static stability | ±1% |
| Dynamic stability | ±5% |
| Frequency | 50 or 60 Hz (configurable) |
| Voltage distortion with non-linear load | ≤3% |
| Voltage distortion with linear load | ≤2% |
| Frequency stability | ±0.05% |
| Overload | 110% for 60 min.; 125% for 10 min.; 150% for 1 min. |
| Batteries | |
| Type | VRLA AGM / GEL; NiCd |
| Environmental | |
| Color | Light grey RAL 7035 |

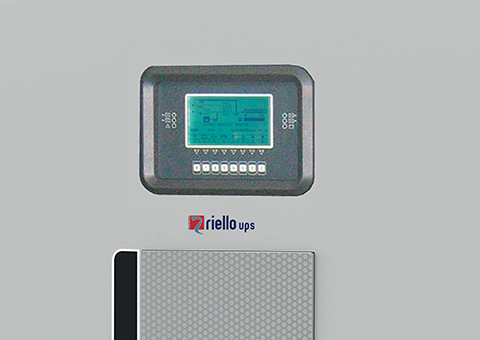

| Communication | UPS status LEDs - Graphic display - 2 slots for communications interface - 2x RS232 |
| Protection rating | IP20 |
| Cooling (type) | Forced by internal redundant fans (Front to top) |
| AC/AC efficiency | Up to 89% |
| Noise (at 1 m) | 67 dB |
| Operating temperature | 0 ÷ 40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: LVD 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety EN IEC 62040-1; EMC EN IEC 62040-2; RoHS compliant -- Classification in accordance with EN IEC 62040-3 VFI-SS-111 |
| Data | |
| Weight | 620 kg |
| Dimensions (h w d) | 1900x800x800 mm |
Characteristics
Industrial environment Master Industrial is suited to the most demanding installation environments where there are vibrations, mechanical stresses, dust and in general where operating conditions are unfavourable to products created for the standard UPS market .
High ICC The high short circuit current (ICC = 3xIn) makes it suitable for loads that require high current peaks during switch-on or during normal operation.
DC Voltage 220 V The input and inverter transformers guarantee the isolation of the batteries, which are sized for a voltage of 220 Vdc (from 108 to 114 elements), the standard industrial value.
Redundant ventilation Redundant ventilation at 100% load is standard, ensuring operation with a normal load with half of the fans operating; in addition, each fan is monitored and an alarm signal is provided in the event of failure. The Easy Source input features, the Battery Care System, and the flexibility and communications capabilities are the same as those of the conventional Master MPS range.
